Satellite SATV 75 Ohm Coaxial Cable SAT703 0.8mm CCC With Green Strips Line

Name: Satellite SATV 75 Ohm Coaxial Cable SAT703 08mm CCC With Green Strips Line
Brand: OEM Produce
Price: 1 USD

Wholesale Satellite SATV 75 Ohm Coaxial Cable SAT703 0.8mm CCC With Green Strips Line from china suppliers

Brand Name : OEM Produce

Model Number : SAT-703B

Certification : CPR. CE. ROHS.

Place of Origin : Hangzhou, China

MOQ : 10km

Price : FOB Shanghai Price: 7.5.00 USD/100m

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

Packaging Details : 100M. 200M. 300M. 1000FT. 500M. Reel

Conductor : 0.8CU/CCC/CCS

Jacket : PVC With Green Line

Color : White or Customized

Application : CATV, SATV, MATV

Packing : 100Meter Heat Shrink Bag

OEM : Available

Contact Now

RG Series SAT703 Coaxial cable Hangzhou AiTe Cable Co.,Ltd.

SAT703B Standard

Construction	Material	Diameter(mm)
Inner Conductor	BC	1.13
Dielectric	Foam PE	4.8
First Shield	Bonded AL Foil	18
Second Shield	AL Braid	60%
Outer Jacket	PVC	6.6

Electrical Characteristics

Impedance (Ω)	75±3
Capacitance (pF/m)	52±2
Velocity of Propagation(﹪)	85.0
Return Loss 5-1000MHz(dB)	≥22
Return Loss 1000-3000MHz(dB)	≥20

Attenuation(@20℃)

Frequency (MHZ)	Min Attenuation (dB/100ft)	Max Attenuation (dB/100m)
5	0.6	1.9
55	1.6	5.2
187	2.8	9.3
211	3.0	10.0
400	4.1	13.5
500	4.6	15.0
750	5.6	18.5
860	6.1	20.0
1000	6.6	21.5
1500	8.2	26.8
1800	8.8	28.9
2200	9.8	32.2
3000	11.5	37.6

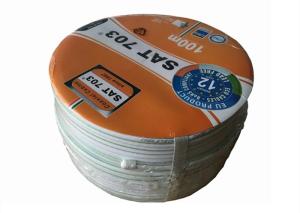

100m Heat Shrink Packing According to Client`s Requirement

Satellite SATV 75 Ohm Coaxial Cable SAT703 0.8mm CCC With Green Strips Line

Finished Loading the Container and Delivery to Port Satellite SATV 75 Ohm Coaxial Cable SAT703 0.8mm CCC With Green Strips Line

OEM Packing As Required

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
