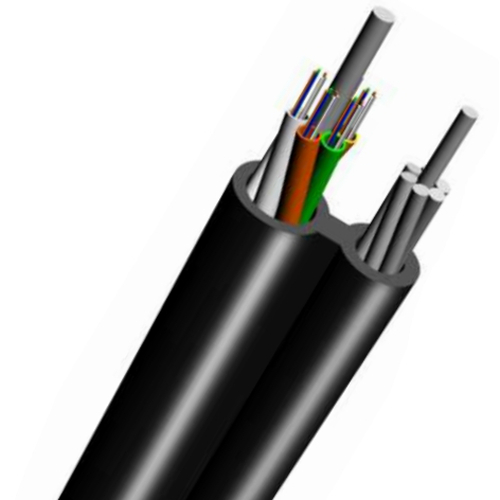

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access

Product Categories

Hangzhou Aite Cable co.,Ltd.

Contact Now

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access

Name: GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
Brand: OEM Produce
Price: 100 USD

Wholesale GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access from china suppliers

Brand Name : OEM Produce

Model Number : GYTC8Y

Certification : CE/ ROHS

Place of Origin : Hangzhou, China

MOQ : 10km

Price : 100-300usd

Supply Ability : 1000km/ month

Delivery Time : 15days

Packaging Details : 2000m/ wooden drum

Type : GYTC8Y

Application : Aerial for Backbone Access

Useful : Figure 8

Fiber : Fiber Optic Cable

Contact Now

GYTC8Y Aerial Figure 8 Fiber Optic Cable for Backbone Access

GYTC8Y Outdoor Cable
Aerial Fig8 Armored Loose Tube Single Jacket/Single Armor Cable

Description

Aerial Fig8 Non-Armored Loose Tube cable is designed especially for aerial
installations. With fiber counts up to 288 and S-Z strand designs.

Temperature Range

Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 10D
Dynamic 20D

Features
Loose tube gel-filled construction for superior fiber protection.
UV and moisture-resistant design.
Self-supporting Figure 8 design.

Applications
Aerial/Lashed.
Backbone. Access.

Option
FRP or Steel central strength member can be choosed.
Different size of steel strand wire can be choosed to reach different mid-span.
Dry core structure available for ease of handling.
Flame-retardant jacket can be provided.

GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
Optical Characteristics GYTS

Fiber Type		G.652	G.655	50/125μm	62.5/125μm
Attenuation(+20℃)	850 nm			≤3.0 dB/km	≤3.3 dB/km
	1300 nm			≤1.0 dB/km	≤1.0 dB/km
	1310 nm	≤0.36 dB/km	≤0.40 dB/km
	1550 nm	≤0.22 dB/km	≤0.23 dB/km
Bandwidth	850 nm			≥500 MHz·km	≥200 Mhz·km
	1300 nm			≥500 MHz·km	≥500 Mhz·km
Numerical Aperture				0.200±0.015 NA	0.275±0.015 NA
Cable Cut-off Wavelength λcc		≤1260 nm	≤1450 nm

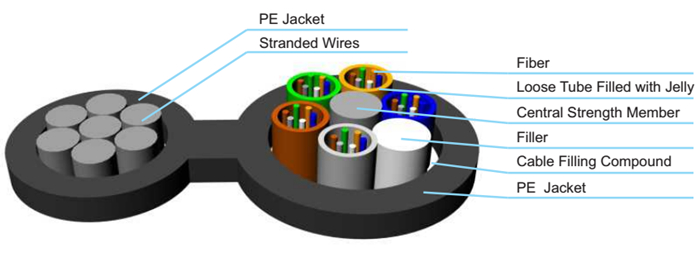

Structure and Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Allowable Tensile Load(N)		Allowable Crush Resistance(N/100mm)
Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Max No. of (Tubes+fillers)	Short Term	Long Term	Short Term	Long Term
2~30	9.4x17.4	180	6	6	4000	2000	1000	300
32~36	10.0x18.0	180	12	6	4000	2000	1000	300
38~60	10.6x18.6	180	12	8	4000	2000	1000	300
62~72	10.9x19.0	215	12	10	4000	2000	1000	300
＞72	Available upon customer·s request				4000	2000	1000	300

Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information. GYTC8Y Outdoor Figure 8 Armoured Fiber Optic Cable For Backbone Access
