QR540M Weld AL Tube 75 Ohm Coaxial Cable with Speel Self Support CATV Cable

Hangzhou Aite Cable co.,Ltd.
Contact Now

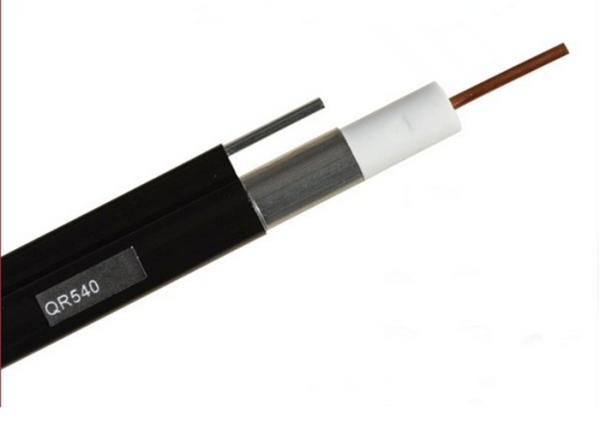

QR540M Weld AL Tube 75 Ohm Coaxial Cable with Speel Self Support CATV Cable

  • 1
  • 2
  • 3

Brand Name : OEM Produce

Model Number : QR540M

Certification : CE. ROHS.

Place of Origin : Hangzhou, China

MOQ : 10km

Price : FOB Shanghai Price: 650.0 USD/1000m

Payment Terms : TT. LC

Supply Ability : 5000km/ Month

Delivery Time : 20days after deposit

Packaging Details : 500M/ 1000M/ Wooden Drum

Type : QR540M Weld AL Tube Cable

self support : Galvanized Steel Messenger Drop Wire

Connector : BC/ CCA

Describe : 50 Ohm Coaxial Cable

Contact Now

QR540M Weld AL Tube 75 Ohm Coaxial Cable with Speel Self Support CATV Cable

Construction
Inner Conductor Material CCA
Diameter(mm) 3.15
Dielectric
Material Foam PE
Diameter(mm) 13.05
Shield Material Solid AL Tube
Diameter(mm) 13.72
Outer Jacket Material PE
Diameter(mm) 15.49
Messenger Material Galvanized Steel
Diameter(mm) 2.77

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 87.0
Return Loss
5-1000MHz(db) ≥22
Screening Effectiveness
5-1000MHz ≥22

Attenuation(@20℃)

Frequency (MHZ) Max Attenuation (dB/100m)
5 0.64
55 1.54
83 1.90
211 3.12
250 3.38
300 3.71
350 4.04
400 4.33
500 4.89
750 6.07
865 6.56
1000 7.12

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
