GJA Waterproof Pigtail Indoor Fiber Optic Cable Φ900µm Tight Buffer Fiber PE Jacket
GJA Indoor Cable
GJA Waterproof Pigtail Cable
Description

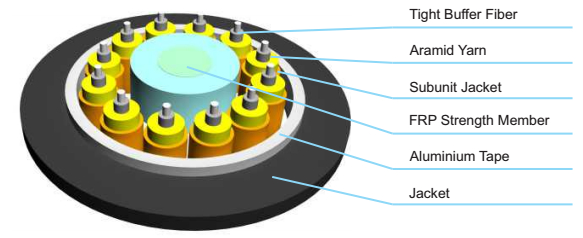

GJA Waterproof Pigtail cable use simplex cable(Φ900µm tight buffer fiber, aramid yarn as strength member) as subunit. A fiber reinforced plastic(FRP) locates in the center of core as a non-metallic strength member. The subunits are stranded around the cable core. An aluminum polyethylene laminate is applied around the cable core. The cable is completed with a PE jacket.
Standards
Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794, etc.
Temperature Range
Operating : -40ºC to +70ºC
Storage : -50ºC to +70ºC
Installation : -30ºC to +70ºC
Bending Radius:
Static 12.5D
Dynamic 25D
Characteristics
Stranded non-metallic strength member structure ensure the cable ensure larger tensile strength.
The outer jacket material have many advantages such as anti-corrosion, anti-water and anti-ultraviolet radiation etc.
APL moisture barrier.
Applications
Indoor any purpose cable distribution.
Interconnect from outdoor to indoor for optical cable distribution equipment.
Optical Characteristics
| Fiber Type | Attenuation | Overfilled Launch | Effective Modal | 10Gb/s Ethernet | Min Bending |
| Bandwidth | Bandwidth | link length | Radius |
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm | |
| Unit | dB/km | dB/km | MHZ.km | MHZ.km | m | mm |
| G652D | 0.36/0.22 | | | | | 16 |
| G657A1 | 0.36/0.22 | | | | | 10 |
| G657A2 | 0.36/0.22 | | | | | 7.5 |
| 50/125 | | 3.0/1.0 | ≥500/500 | | | 30 |
| 62.2/125 | | 3.0/1.0 | ≥200/500 | | | 30 |
| OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 30 |
| OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 30 |
| BI-OM3 | | 3.0/1.0 | ≥1500/500 | ≥2000 | ≥300 | 7.5 |
| BI-OM4 | | 3.0/1.0 | ≥3500/500 | ≥4700 | ≥550 | 7.5 |
Structure and Technical Specifications
| Fiber | Cable Diameter | Cable Weight | Tensile Strength | Crush Resistance |
| (N/100mm) | (N/100mm) |
| Count | (mm) | (kg/km) | Short Term | Long Term | Short Term | Long Term |
| 4 | 8.3±0.5 | 58 | 440 | 130 | 1000 | 300 |
| 6 | 9.2±0.5 | 73 | 660 | 200 | 1000 | 300 |
| 8 | 10.6±0.5 | 96 | 660 | 200 | 1000 | 300 |
| 12 | 13.4±0.5 | 155 | 660 | 200 | 1000 | 300 |
Note: This datesheet can only be a reference, but not a supplement to the contract. Please contact us for more detailed information.
If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.
If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.
